13 Mar 2015

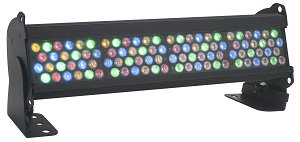

Colour Chorus: A New Series of High-Quality LED Battens from Elation Professional

Colour Chorus from Elation Professional is a new series of LED batten wash lights useful for floodlighting surfaces and stages in even dynamic washes of colored light. Available in 1’ (0.3m), 2’ (0.6m), 4’ (1.2m), and 6’ (1.8m) lengths, Colour Chorus fixtures use long-life individual 3W RGBA (Red, Green, Blue, Amber) LEDs for a broader and finer range of colors, the amber LED extending the color range and providing an effective means of color temperature control and higher color rendering.

Hue, saturation and intensity of each LED are individually controllable while LED group control allows for even further design possibilities. A selection of variable dimming curves is provided for faster programming and a selection of strobe and chase effects add to their versatility. All fixtures in the Colour Chorus Series are built with rugged die-cast aluminum exteriors and operate flicker free for use in TV and other broadcast applications.

The Colour Chorus comes in a variety of 4 sizes, starting at the “Colour Chorus 12″ which is a 12” LED batten wash light housing 48x 3W RGBA LEDs (12 per color), to the larger “Colour Chorus 72″ consisting of a 72” LED batten wash light with 288x 3W RGBA LEDs (72 per color).

A host of other professional features come standard with each Colour Chorus fixture like multi-channel DMX control, 3 and 5-pin DMX In/Out, PowerCON In/Out and RJ45 in/out connections. All Colour Chorus Series fixtures are ArtNet™, KlingNet™ and RDM (Remote Device Management) protocol capable and come with multiple-unit power linking. A 4-button control panel with LCD menu display provides for easy hands-on programming with easy-to-read fixture menus and messages. An integrated rigging bracket allows for quick hanging and an auto-sensing power supply covers worldwide voltages and frequencies.
