AO – a story behind the logo …The P.A. People deliver iconic logo device for the Australian Open

“…The AO installation became a cornerstone of our international brand roll-out and it captivated our audiences with its sheer size and stunning imagery.”  Jo Juler- Head of Marketing-AO

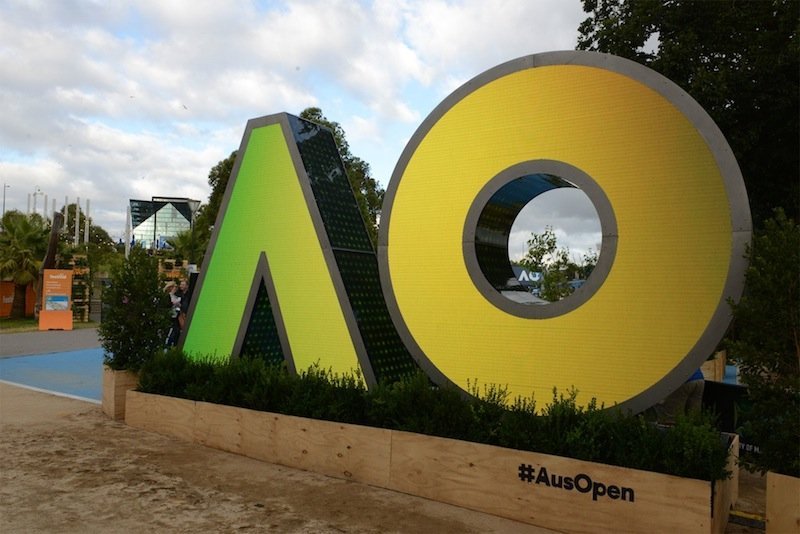

As part of their pitch for the rebranding of the Australian Open, Landor, Tennis Australia’s chosen branding agency, created a video rendering of their proposed logo. The rendering depicted a 3m high three-dimensional logo, complete with a video screen on its front and LED pixels covering the side surfaces.

Whilst not part of Landor’s actual deliverable, the concept inspired Tennis Australia to test the market to see if it were possible.

The technical team at Tennis Australia prepared and issued a specification in August last year.   Sydney’s The P.A. People, who had worked with Tennis Australia on many events over the years, took up the challenge.

“Our experience in designing bespoke mechanical solutions as part of AV systems integration, coupled with our work around the world on large scale events, led us to believe we could create a viable and cost effective solution” said Chris Dodds, Managing Director – The P.A. People and lead designer of the AO logo project.

“The P.A. People took a concept and brought it to life with an extraordinary feat of engineering. The AO installation became a cornerstone of our international brand roll out and it captivated our audiences with its sheer size and stunning imagery.  The team at The P.A. People are to be commended for working with us on such a complex project in such a short timeframe; the evidence of its success is in the exposure the installation had during the tournament“ said Jo Juler- Head of Marketing-AO.

Chris Dodds outlines the process: Our solution was based on a stainless-steel space frame structure, similar to the construction of an airframe. Each of the 440 pieces of stainless steel was laser cut and folded from one of 230 separate patterns and then assembled in our workshop with a combination of bolts and rivets. The fabrication did not rely on a frame per se – rather, a combination of flat 3mm panels and lateral spokes or ribs provided the structural integrity required. We chose stainless steel to provide a durable and elegant surface for the logo over time – we felt that paint was simply not an option given its proposed deployment in public spaces.

The side surfaces are a combination of grey tinted polycarbonate and a specially imported acrylic diffuser, selected to enhance the look of the 1,900 triple chip LED pixels that surround the body of the AO logo.

The 3.9mm pitch outdoor LED screen is accessible from the front of the unit for maintenance, while the server and interconnections are accessed through lockable rear hatches.

The assembled screen is some 3.2m high, almost 7m long and 850mm deep. It weighs some 2.5tonne. The system is designed to fit in its own 20’ High Cube shipping container, incorporates its own media server and sound system and is complete with its own stage.

We signed a contract in early October and delivered the unit in time for the Australian Open in January. It was a tight time line, but with the help of our specialist metal fabrication partners and screen supplier, we were able to deliver the package on time.

“Tennis Australia arranged some exceptional content, through both Sydney-based animation agency ‘Looper’ and Tennis Australia’s own media team, which brought the logo to life. Without the fantastic content the screen would have been an elegant sculpture. With the imagery, it became the focus of the entry to the Australian Open Festival in Birrarung Marr and gained a significant level of social media coverage in its own right” said Chris Dodds.


Visit our site:
http://www.papeople.com.au
Find out more about The Australian Open: http://www.ausopen.com
Find out more about Tennis Australia: www.tennis.com.au
Side bar:

FAST FACTS:

  • The 105th edition of the Australian Open tournament 2017 was held atMelbourne Park in Melbourne, Victoria, Australia from January 16 to January 29, 2017



  • Key players featured included Roger Federer, Rafael Nadal, Serena Williams and Venus Williams



  • The event was first held in 1905. The tournament is the first of the four Grand Slam tennis events of the year, the other three being the French Open, Wimbledon and the US Open



  • It features men’s and women’s singles; men’s, women’s and mixed doubles and junior’s championships; as well as wheelchair, legends and exhibition events



  • The 2017 tournament were played on hard courts and over a series of 25 courts, including the three main show courts: Rod Laver Arena, Hisense Arena and Margaret Court Arena



  • Prior to 1988 the tournament had been played on grass. Since 1988 two types of hardcourt surfaces have been used at Melbourne Park – green Rebound Ace to 2007 and blue Plexicushion from 2008.
