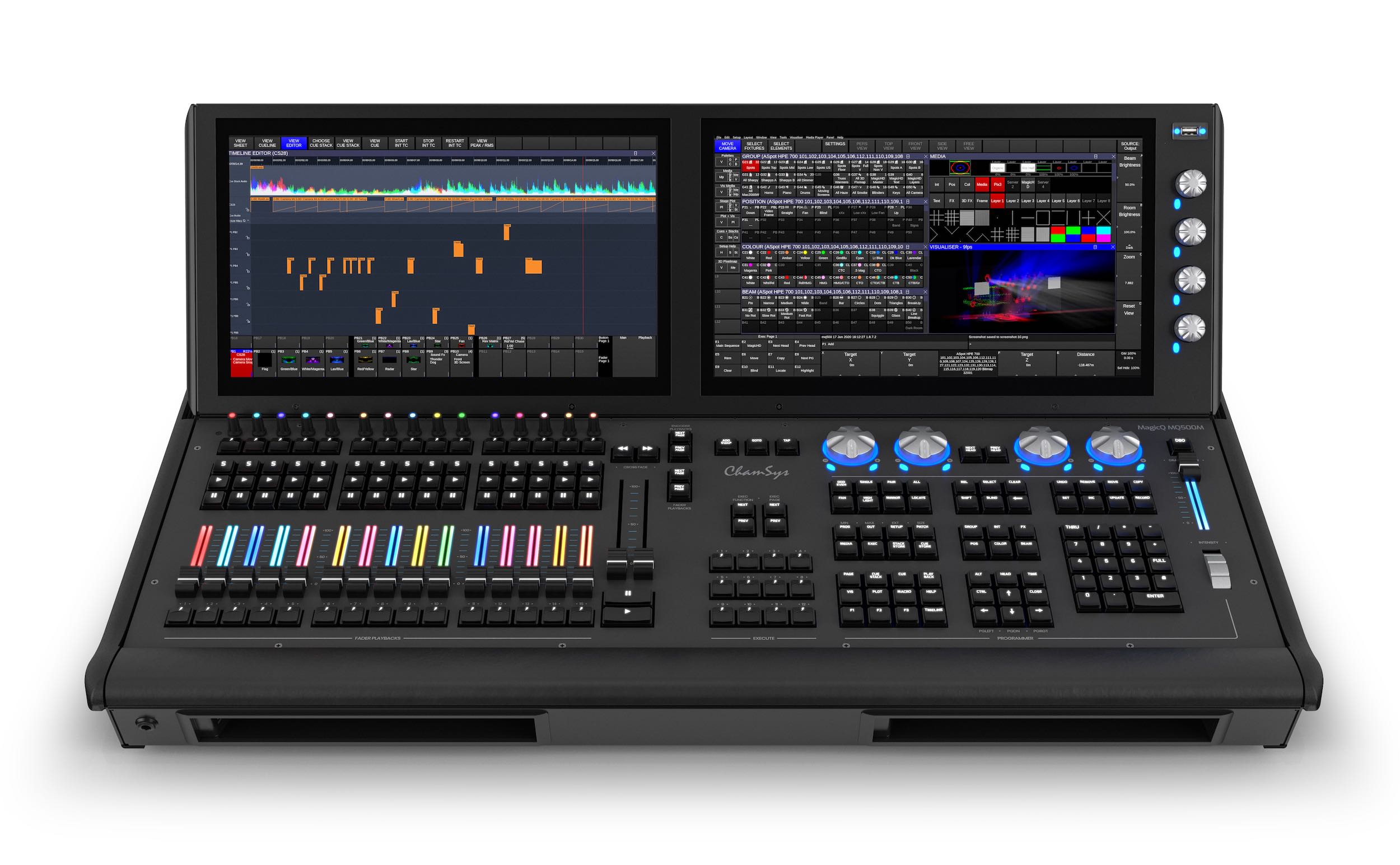

ChamSy MagicQ MQ500M Stadium

The MagicQ MQ500M Stadium is a new powerhouse that offers 256 universes of control direct from the console without the need for additional processing nodes. The MagicQ MQ500M Stadium incorporates a robust array of software features that support motorised playback faders, playback encoders and customisable illumination. Thanks to its motorised function, the playback section can be used for multiple purposes with shortcut buttons to change the function.

With 15 motorised faders and 15 playback encoders per bank, and up to six banks, a total of 180 playbacks can be accessed at the touch of a button. RGB LED illumination enables different colours to be assigned to each individual fader and playback encoder, enabling unlimited customisation.

With a built-in UPS, the console has two full HD multi-touch displays with adjustable viewing angles. The MagicQ MQ500M Stadium Wing adds a third full HD multi touch display and doubles the number of fader and encoder playbacks. Up to five additional touch monitors can be connected to the system via network using the simple Multi-Window PC application giving a total of eight monitors. With a built-in UPS, the console has two full HD multi-touch displays with adjustable viewing angles.

The MagicQ MQ500M Stadium Wing adds a third full HD multi touch display and doubles the number of fader and encoder playbacks. Up to five additional touch monitors can be connected to the system via network using the simple Multi-Window PC application giving a total of eight monitors. The MagicQ MQ500M has built-in plot and visualisation, audio timeline editor, and a multi emitter colour picker. Its 3D palette system and support for external XYZ trackers allow innovative features like Focus line, Focus Hold and tracking of artists and moving objects to be used.

Shows with all 256 universes can be previsualised and preprogrammed on a PC or Mac without additional hardware or dongles and then loaded into the MagicQ MQ500M console. All 256 universes can also be visualised within the inbuilt MagicVis visualiser or with a direct link to 3rd party visualisers such as WYSIWYG, Capture, Vectorworks, Depence and L8.

ULA Group www.ulagroup.com or 09 889 3363

ChamSys MagicQ MQ500M Stadium
