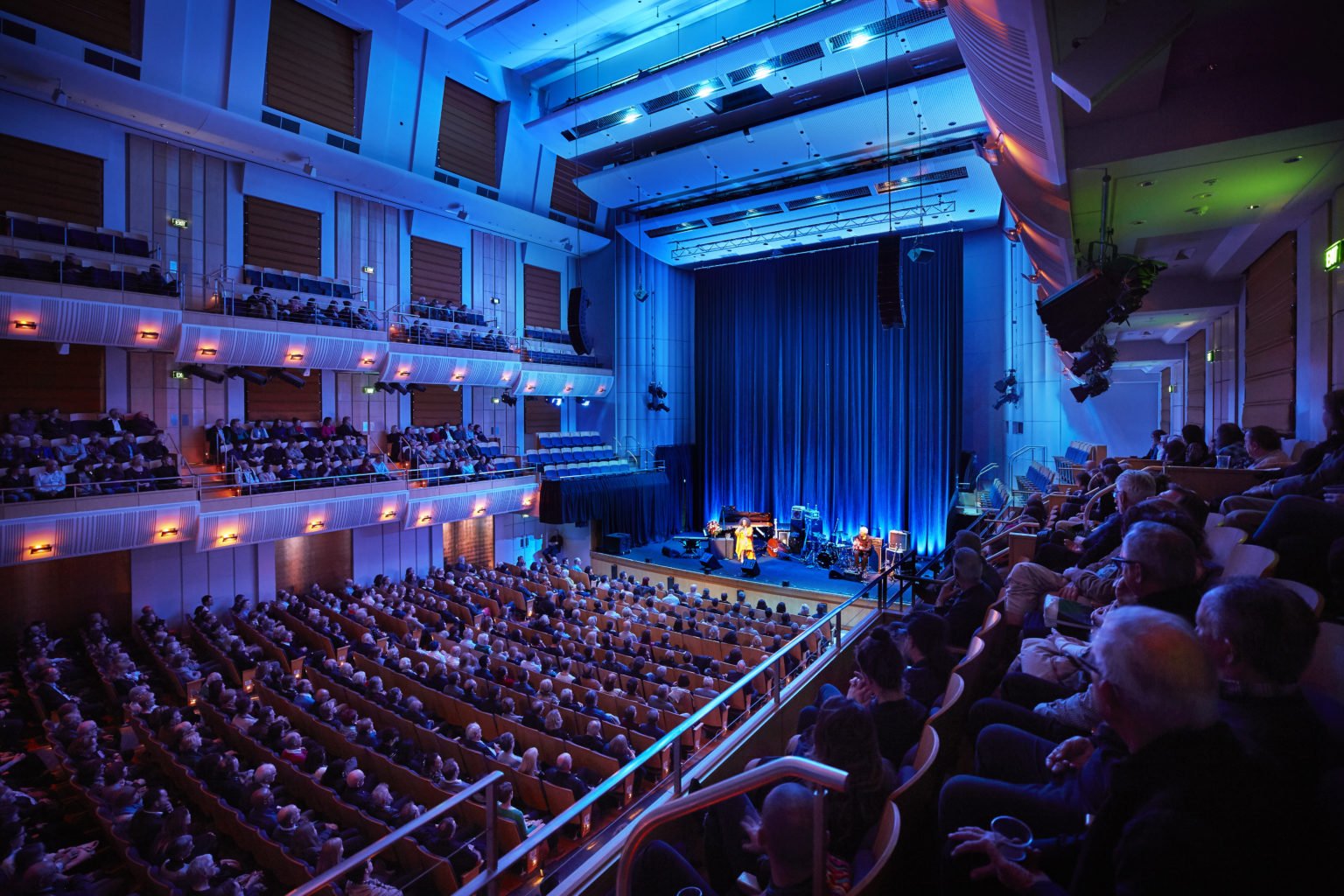

(Photo by Keith Saunders)
Sydney’s beloved City Recital Hall at Angel Place hosts a rich program of concerts and events, covering a broad range of genres from the contemporary to the classical. For 20 years, it has been a beacon to music lovers, nestled in the famous laneway precinct of the CBD.
As the venue enters its third decade of operation, time and heavy usage meant that the original stage management system, the essential control centre of every performance, was past its serviceable life and needed to be replaced.
“The system was part of the original 20-year-old fit out of the venue and as such had become unreliable and no longer fit for purpose,” relates Andrew Hudson, Technical Services Manager at City Recital Hall. “We put out a public tender for its replacement. The brief required the successful company to design, supply, program, install, test, and commission a system that, in addition to providing the usual functions such as paging to various backstage and foyer areas, talkback, and cue-lights, also included a large number of bespoke items, such as the ability to monitor stage temperature, be able to operate simple performance audio and lighting, record and playback messaging to foyers and backstage areas and record performance content. A new FOH manager’s announcement and audience recall system also fell within the scope of works.”
The P.A. People proposed a new system based around Crestron control, an ETC CueSystem, QSC Q-SYS audio processing, and Clear-Com FreeSpeak ll comms. Their bid was successful, and a team headed by Project Manager Ross Ford rolled up their sleeves and got to work.
“We had to enable a lot of functionality that’s not usually included in an SM console,” explains Ross. “The big one was the ‘Basic Mode’ that allows for one-person operation of the venue. This includes control over the work lights and some lighting dimmers, the ability to trigger a preset lighting state, and simple volume control over wired and wireless microphones, all via the 10-inch Crestron touch panel fitted into the console.”
The Q-SYS audio DSP has been programmed to record and playback audio messages, including an ‘Acknowledgement of Country’ announcement. Stage managers can pre-record their own announcements and preview them before storage or playback, allowing them to practice difficult pronunciations, for example.
Remote temperature sensors installed around the performance area can now be read from the stage manager’s console, enabling SMs to monitor changes in humidity and the environment that may affect the tuning of instruments. In addition, dual 7-inch monitors allow the SM to see live feeds from a new over-stage camera and the existing conductor-view camera.
The ETC CueSystem is a network-enabled cue light system, whose plug-and-play ‘CueSpider’ outstations can be positioned anywhere in the venue and linked to the nearest network port via a Cat5 cable. This means that it’s not just performers backstage that can be cued on, but FOH staff can be silently signalled to let in latecomers.
“The scope of works for the new system was the culmination of consultation with stakeholders, including casual and full time Stage Managers, along with wish-lists from hirers and presenters,” elaborates Andrew Hudson. “Although some of the requirements for the new system fell outside of what would be considered normal SMC functions, Ross Ford and his team have been positive and proactive in delivering City Recital Hall’s specific requirements. The integration of the systems with existing services was a challenging requirement given the age and complexity of the existing infrastructure, and the limited original documentation. The P.A. People have delivered a system that will be of service well into the future.”
The P.A. People provided a custom electronic height adjustable Stage Management Console containing the following:
- 10” Crestron Panel
- Blackmagic dual 7” SDI monitor
- Ruckus 12 port Network switch with 10GB SFP fibre ports
- Atterotech Dante Mic input/Output device
- ETC CueSystem 8 channel rack mount master
- Shure MX418 mic
- Custom paging panel with 10 zones
The main system includes the following:
- QSC Qsys Core110F processor
- Crestron CP3
- Ruckus 24 port Network switch
- Clear-Com FreeSpeak ll Master and 4 wireless beltpacs with Beyer Headsets
- Australian Monitor HS 412P amplifier
- Australian Monitor HS 212P amplifier
- ENTTEC DMX Interface
- Crestron 7” Touch Panel at Front of House Manager’s position
